pictures in support of ATel 15423 (Jun 8, 2022)

"Spectral changes as U Sco passes through maximum brightness"
U. Munari U. (INAF Padova), P. Valisa and S. Dallaporta (ANS Collaboration)

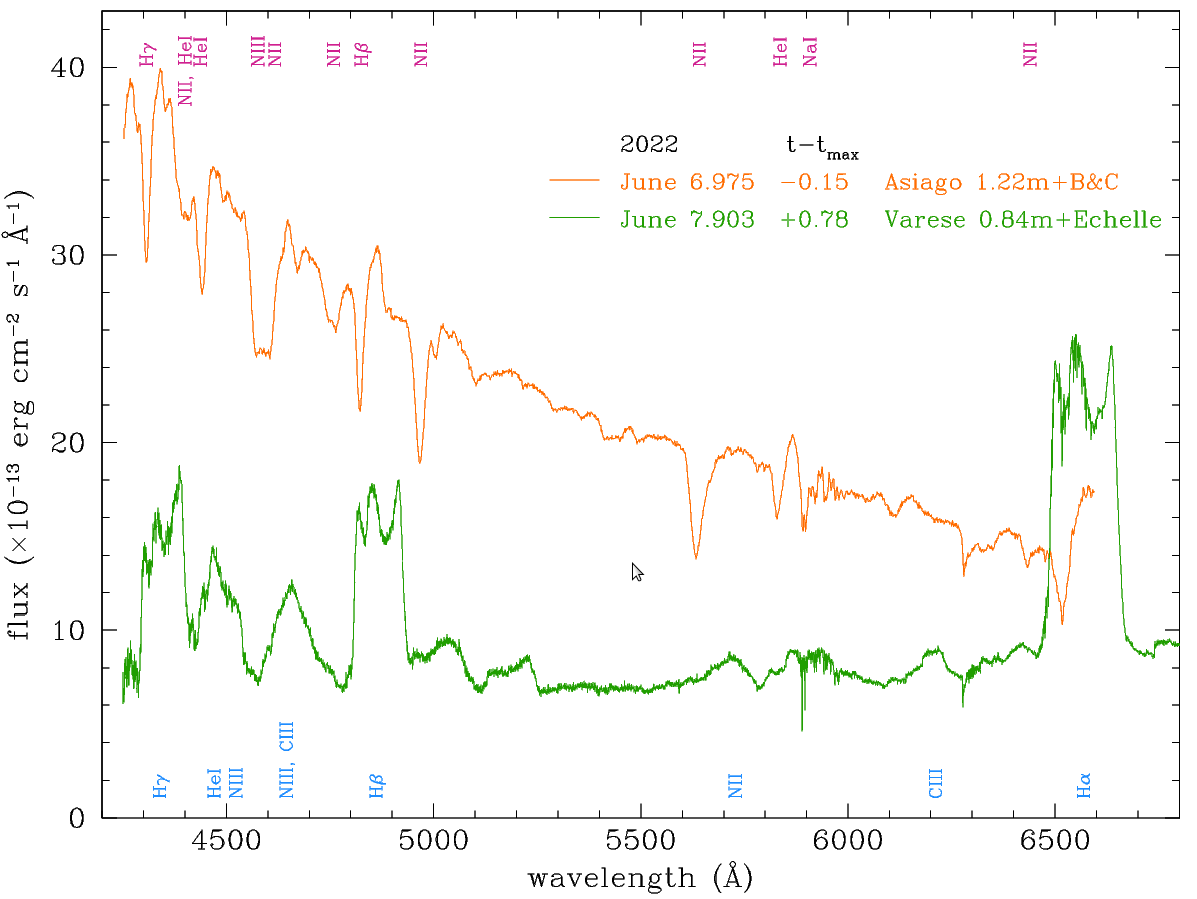

Fig.1

Comparing our t-t(max)=+0.78 days Echelle spectrum with the pre-maximum t-t(max)=-0.15 days spectrum by Siviero and Munari (ATel #15417).

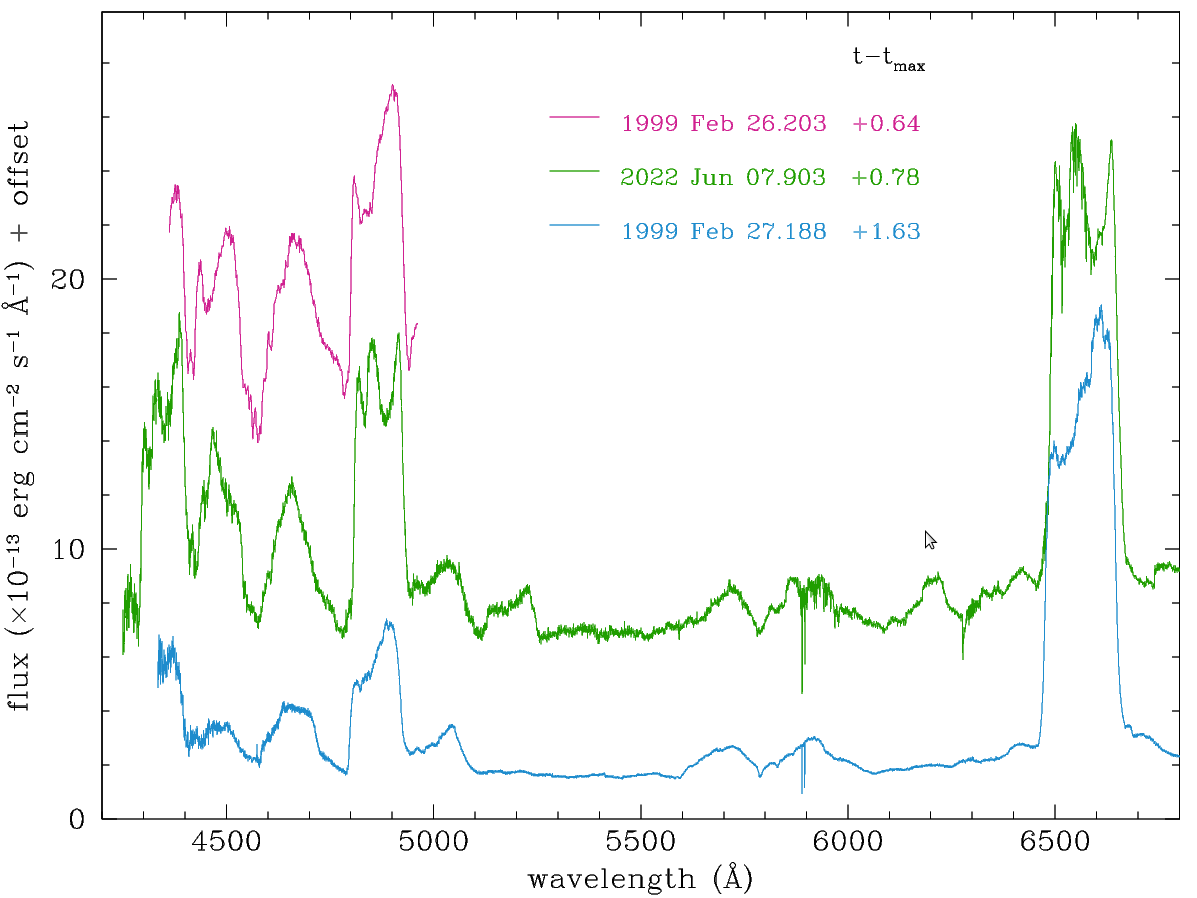

Fig.2

Comparing our t-t(max)=+0.78 days Echelle spectrum with spectra from Munari et al. (1999, A&A 347, L42) taken as similar epochs during the 1999 eruption of U Sco.
